15000BPH Carbonated Drink Bottle Capping Machine 310mm Height SUS316

Name: 15000BPH Carbonated Drink Bottle Capping Machine 310mm Height SUS316
Brand: Aquatrin
Price: 15000 USD

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Function : Washing Filling Capping

Processing Types : Automatic Bottle Filling Line

After-sales Service Provided : Online support, Video technical support, Free spare parts, Field inst

Model : CGF32-32-8

Advantage : Automatic Working

Warranty of core components : 2 years

Contact Now

Description

The CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage and other non-gas beverage machinery. Beverage Machinery can finish washing , filling and sealing bottles in one machine and reduce the dust and exposure time, improve the sanitary conditions, production capacity and economic efficiency.The whole process is automatic.

1)water purification system
 Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis → Ozone sterilizer → pure water tank

 2) Bottle filling & packing system
 Pure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1→ Light check → Full-automatic labeling machine → Ink jet machine →Full automatic PE film packing machine→ warehouse

 3)Bottle making system
 pet preform→Autoloader→reheater →molding→ bottles

Technical parameters

Model	CGF14-12-4	CGF16-16-5	CGF18-18-6	CGF24-24-8	CGF32-32-10
Capacity (500ML)	4000BPH	6000BPH	8000BPH	12000BPH	15000BPH
Washing Heads	14	16	18	24	32
Filling Heads	12	16	18	24	32
Capping Heads	4	5	6	8	10
Suitable Bottle	PET Bottle ,Plastic Bottle
Diameter of bottle Diameter	55-110 MM
Height Of Bottle	150-310MM
Suitable Cap	Plastic Screw Cap
Weight	2500kg	3000kg	4000kg	4500kg	6000kg

Details Images

15000BPH Carbonated Drink Bottle Capping Machine 310mm Height SUS316

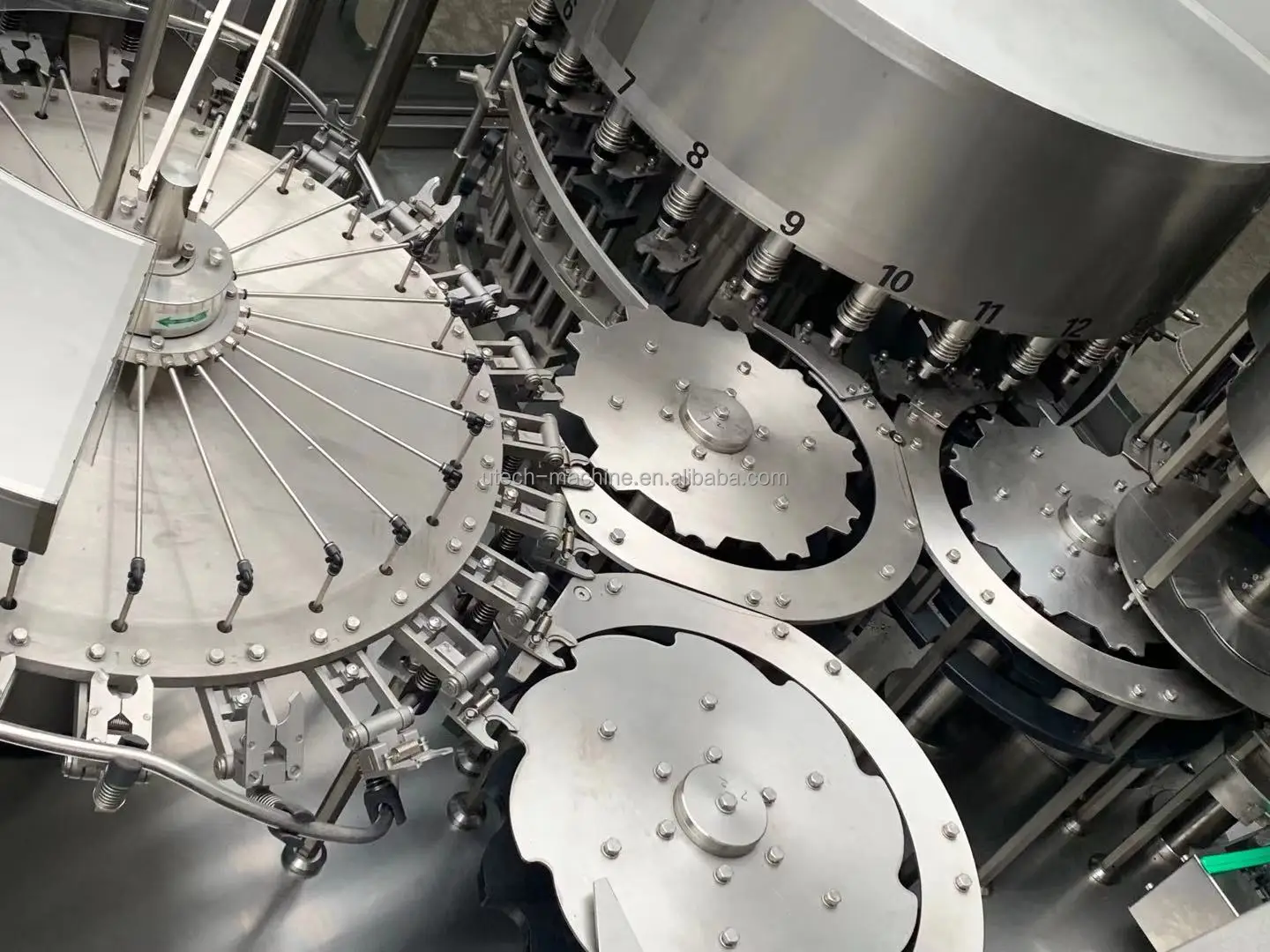

The Washing heads

1.All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean 2.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing 3. 304/316 stainless steel washing pump

The filling heads

304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling

All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

304/316 stainless steel filling pump

The capping heads

Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
 capping
304/316 stainless steel onstruction

No bottle no capping

Automatic stop when lack of bottle

Main Features

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable changing the bottle-shaped become easier.

Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change the related curved plate, wheel and nylon parts is enough..

The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

High-speed large gravity flow valve filling valve, filling fast, accurate and no liquid lose.

Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

Water treatment system

Product Range:
 1.reverse osmosis(RO)equipment series
 2.Filter equipment series
 3.Membrance and filter elements Electro dialysis,
 4.ion exchanger,
 5.ozone sterilization system
 Scope of application:
 1.Drinking pure water,
 2.mineral water food and drink water
 3.Boiler feed water,
 4.industrial wasted water treatment Pharmaceutical water ,
 5.high purity water in electronic industy
 Main parts:
 -- Raw water tank
 -- Raw water pump

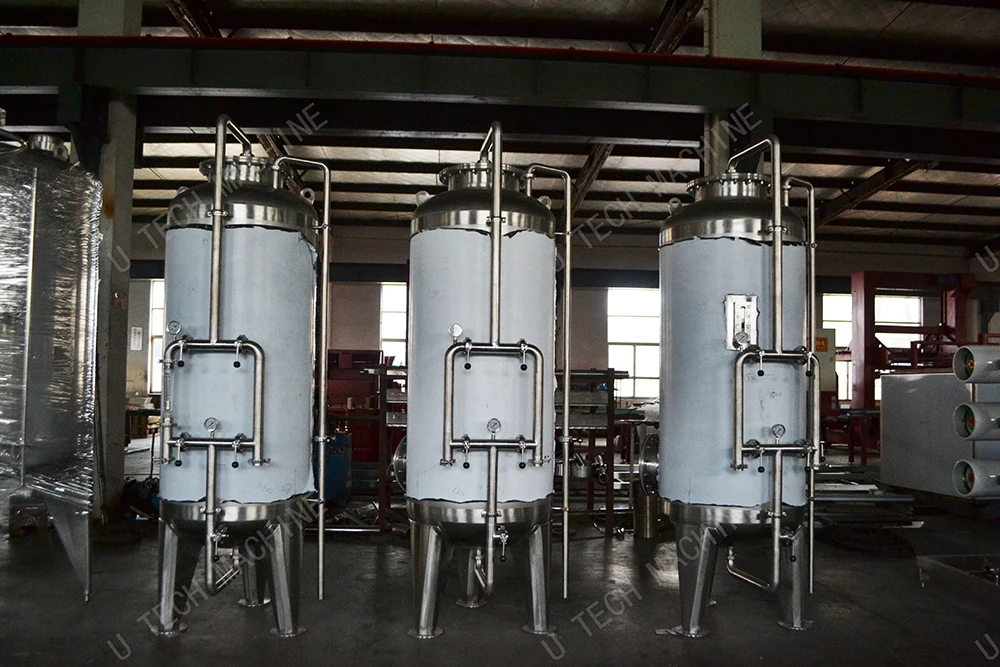

 -- Quartz sand filter
 -- Active carbon filter
 -- Ion exchanger
 -- Salty water barrel
 -- Precision filter
 -- Water buffer tank

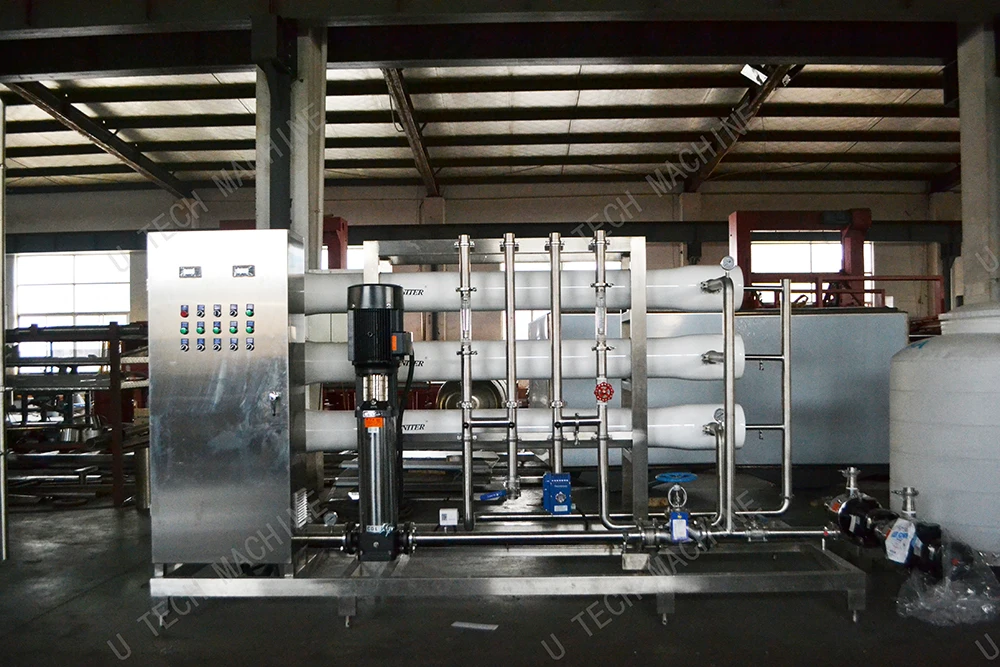

 -- Ro system
 -- Ozone sterilizer

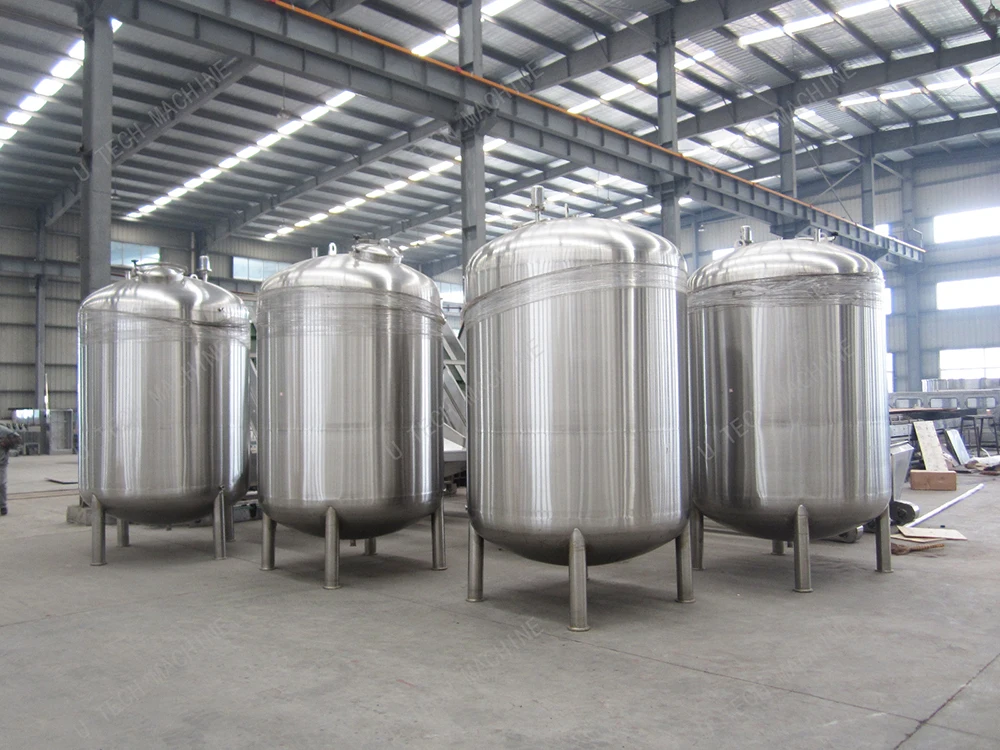

 -- Pure water storage tank
 -- Sterile water storage tank

Bottle blow molding machine

Automatic PET Bottle Blowing Machine

The PET stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L.

Semi-Automatic PET Bottle Blowing Machine

It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

Bottle Unscrambler

This machine is suitable for unscrambling polyester bottles and make them in one line, then discharge them by vacuum conveyor ,its feature are as below: PLC program controlling , digital show speed , automatic high speed operation, easy to combine with all kinds of filler or filling production line

Sleeve labeling machine

This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
 direction and different height.The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head
 designing, make the film-rolling cut more exactly and reliably.

Shrink packing machine

The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc.Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.

Product Tags:

310mm Height Bottle Capping Machine

15000BPH Carbonated Drink Bottle Capping Machine

SUS316 Bottle Labeling Production Line
